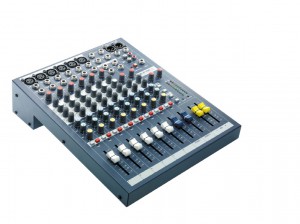

EPM series


설치용 레코딩 & 방송


PRO-QUALITY MIXING

EPM 6 (6 mono + 2 stereo)  /  EPM 8 (8 mono + 2 stereo)  /  EPM 12 (12 mono + 2 stereo)

• 정밀한 GB30 마이크 프리앰프
• +48V 팬텀파워
• 2개의 설정가능한 AUX 버스
• 3밴드 EQ, 중역대에 주파수 설정 가능(모노입력)
• 2밴드 EQ, 스테레오 입력
• 모든 모노 입력에 인서트단
• 랙에 간단하게 마운트 가능

TYPICAL SPECIFICATIONS








Frequency Response

Mic/ Line Input to any Output . . . . . . . . . . . . .+/-0.5dB, 20Hz – 20kHz


T.H.D.

Mic Sensitivity -30dBu, +14dBu @ Mix output . . . . . .< 0.007% @ 1kHzNoise


Noise

Mic Input E.I.N. (maximum gain) . . . . . . . . . . .-128dBu (150Ω source)
Aux, Mix and Masters (@ max, faders down) . . . . . . . . . . . . . .< -85dBuCrosstalkChannel

DIMENSIONS & WEIGHT








Height

All frame sizes . . . . . . . . . . . . . . . . . . . .91mm (3.6")


Width

EPM6 . . . . . . . . . . . . . . . . . . . . . . . . .280mm (11.0")
EPM8 . . . . . . . . . . . . . . . . . . . . . . . . .330mm (13.0")
EPM12 . . . . . . . . . . . . . . . . . . . . . . . .432mm (17.0")


Depth

All frame sizes . . . . . . . . . . . . . . . . . .362mm (14.3")


Weight

EPM6 . . . . . . . . . . . . . . . . . . . . . . . . .4.0kg (8 .8 lbs)
EPM8 . . . . . . . . . . . . . . . . . . . . . . . .4.6kg (10.1 lbs)
EPM12 . . . . . . . . . . . . . . . . . . . . . . .5.8 kg (12.8 lbs)
