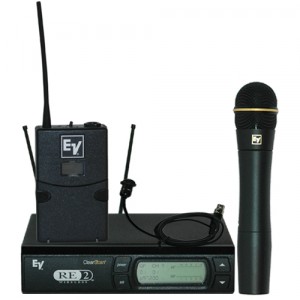

Re2-COMBO N/D 267a≫ 근거리 효과와 뛰어난 명료도를 위한 VOB기술≫ 피드백을 없앤 카디오이드 패턴≫ 입력강도와 S/N 비율을 개선한 네오디뮴 마그넷 구조≫ 잡기 편한 Warm-Grip 핸들≫ On/Off Switch(N/D 267as)
Re 2 Receiver
RF Specifications
A Band
648 - 676 MHz (TV Ch. 43-48)
B Band
696 - 724 MHz (TV Ch. 51-56)
Connector Type
1/4" unbalanced
3-pin XLR
Antennas
External 1/4 wave detachable
Diversity
Digital Posi-Phase™ True Diversity
Number of channels
1112 possible (programmable in 25kHz steps) per band
Power Requirement
12 V AC/DC 300mA
Dimensions (HxWxD)
43.7 x 190.5 x 150 mm (1.72" x 7.5" x 5.91")
N/D 267 a
Element
Dynamic
Impedance, Low-Z balanced
300 Ohms
Open Circuit Voltage
2.9 mV/Pascal
Audio Frequency Response
45 - 15,000 Hz Near Field 100 - 15,000 Hz Far Field
Wired/Wireless
Wired
Finish
Non-reflecting Black
Dimensions (Height?X?Max?Diameter)
181 x 52?mm(7.13" x 2.05")
Weight
238 g ( 8.4 oz )
