NL8MM8 pole speakON feedthrough adapter for cable extensionsTechnical InformationProductTitleNL8MMConnection TypeAdapterGendermaleElectricalContact resistance¡Â 3 m¥Ø (after lifetime)Dielectric strength4 kVdc (peak)Insulation resistance> 1 G¥Ø (after dampheat)Rated current per contact15 A rms continuousRated current per contact30 A audiosignal, duty cycle 50 %Rated voltage250 V (Insulation)AttentionspeakON is NOT to be used as an AC mains or power supply connector!MechanicalLifetime> 5000 mating cyclesLocking deviceQuick LockMaterialContact plating4 ¥ìm AgContactsBronze (CuSn6)InsertPolyamide (PA 6 30 % GR)ShellPolyamide (PA 6 30 % GR)EnvironmentalFlammabilityUL 94 HBSolderabilityComplies with IEC 68-2-20Temperature range-30 ¡ÆC to +80 ¡ÆC

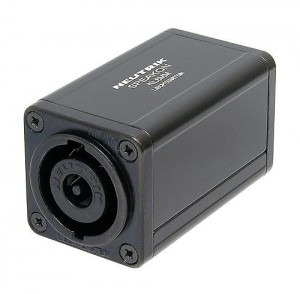

8 pole speakON feedthrough adapter for cable extensions
Title
NL8MM
Connection Type
Adapter
Gender
male
Contact resistance
¡Â 3 m¥Ø (after lifetime)
Dielectric strength
4 kVdc (peak)
Insulation resistance
> 1 G¥Ø (after dampheat)
Rated current per contact
15 A rms continuous
30 A audiosignal, duty cycle 50 %
Rated voltage
250 V (Insulation)
Attention
speakON is NOT to be used as an AC mains or power supply connector!
Lifetime
> 5000 mating cycles
Locking device
Quick Lock
Contact plating
4 ¥ìm Ag
Contacts
Bronze (CuSn6)
Insert
Polyamide (PA 6 30 % GR)
Shell
Flammability
UL 94 HB
Solderability
Complies with IEC 68-2-20
Temperature range
-30 ¡ÆC to +80 ¡ÆC
