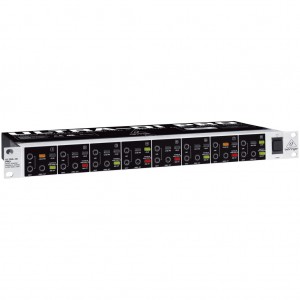

The ULTRA-DI PRO DI800 is a professional mains/phantom powered 8-channel active DI-box. If you need a rack-mountable DI unit with enough inputs to accommodate everyone on stage or in the studio, plug into the DI800.
PRO-Active
Direct Injection (DI) boxes make it possible to connect guitars, basses and keyboards (as well as other line-level devices) to audio mixers and recorders. They are absolutely essential for proper impedance matching and to maintain signal integrity. BEHRINGER active DIs feature “buffered” inputs that won’t degrade the source signal like passive DI boxes can. Balanced signals leaving the DI800 are extremely low impedance (typically less than 680 Ω), and far less susceptible to noise and interference.
1/4" In, XLR Out—Is That All?
When it comes right down to it, all DI boxes do the same thing, right? Yes, but the DI800 does much more than just “bass guitar in, mic level signal out.” It really is a highly versatile input-signal toolkit.
Here are just two special features that differentiate the DI800 from most standard DI boxes:
• Maybe you’d like to connect your guitar amp’s speaker output to your mixer? Not a problem, the DI800 features a -30
dB attenuation switch, allowing you to connect to speaker outputs (up to 3,000 Watts!) and convert them to balanced
XLR outs.
• Got a weak incoming signal? The DI800 has a +20 dB switch, which really comes in handy for boosting low-level input
signals.
Of course, the DI800 provides a LINK output for easy connection to other equipment, such as onstage amplifiers and monitor consoles. Servo-balanced performance guarantees ultra-flat frequency response, and the gold-plated XLR output connectors provide reliable, low-noise operation. Per channel ground lift switches eliminate ground-loop hum problems. The DI800 does everything a standalone DI can do—times eight!
Power Trip
Unlike their passive counterparts, active DI boxes require a power source to make their internal electronics work. The DI800 provides two power options: 120 – 240 V~ from the nearest wall outlet or power strip, or +18 to +48 V DC from your mixer’s phantom power supply.
Superior Sound, Incredible Value
The 8-channel ULTRA-DI PRO DI800 delivers exceptional sound quality—at an extremely affordable price. Find out how the DI800 can help improve your sound at your nearest BEHRINGER dealer.
Reviews
Sound on Sound LIVE magazine
November 2004
One answer is to use a multi-channel DI box powered from the mains, and the BEHRINGER DI800, which can also run from phantom power, is a very cost-effective example of such a unit. I tested this unit at an outdoor event where multiple bands were taking part and found that it provided a reliable and quiet feed from all the sources I sent it, including an acoustic-guitar pickup system and a bass guitar.
The DI800 is a practical solution to many multi-channel DI requirements and delivers a very adequate level of studio quality at a bargain-basement price.
[…] The ground-lift works effectively, and on the whole this box gets on with its job while you get on with yours.
If all you need is multiple channels of DI capability for instrument, line or speaker signals, this is one of the most cost-effective solutions out there.
Summary
There’s nothing fancy about the DI800 but it does everything it should, the audio quality is fine and it is unbelievably cheap. |
