▶ 제품특성

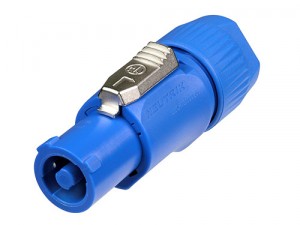

* Cable connector, quick lock with securing lever, A-type for power-in, screw terminals
* www.Neutrik.com


Locking 20 A / 250 V ac appliance coupler
3 contacts for line, neutral and premating safety ground
power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating
Fast and easy twist lock latching system
Extremely robust and reliable
Ergonomic design
User friendly latch design for easy handling
Unique Neutrik chuck type strain relief
UL, cUL recognized components
VDE certified
SEV approved
Branded with unique hologram - guarantees genuine and authentic Neutrik product




▶ 상세스펙







Product


Connector Type

PowerCon


Gender

female


Electrical


Contact resistance

≤ 3 mΩ


Dielectric strength

4 kVdc


Insulation resistance

> 0.1 GΩ (after damp heat test IEC 68-2-30)


Rated current per contact

20 A


Rated voltage

250 V


Mechanical


Cable O.D.

5 - 15 mm


Lifetime

> 1000 mating cycles


Wire size

2,5 mm²


Wire size

14 AWG


Wiring

screw type terminals or soldering


RW / Straight

no


Locking device

Quick Lock


Coding

A-type for power inlet (color coding blue)


Material


Bushing

Polyamide (PA 6 15% GR)


Contact plating

4 µm Ag


Contacts

Bronze (CuSn6)


Insert

Polyamide (PA 6 30 % GR)


Locking element

Zinc diecast (ZnAl4Cu1)


Shell

Polyamide (PA 6 30 % GR)


Strain relief

Polyacetal (POM)
