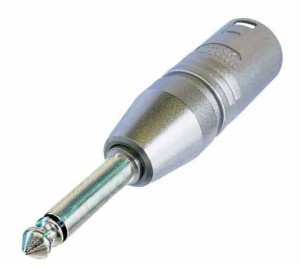

캐논잭 암놈을 오디오잭으로 변환해주는 커넥터입니다.





▶ 제품특성


* 3 pole XLR female - Mono 1/4" plug
* NA2MP : 3 pole XLR male - Mono 1/4" plug
* www.Neutrik.com


Versatile, pre-wired and ready to use adapters to reliably interlock various
    connector systems
Professional look and compact space saving design, based on the X Series
   (XLR worldwide accepted standard)
Rugged diecast shell for best reliability

▶ 상세스펙







Product


Connector Type

Adapter


Electrical


Contact resistance

≤ 3 mΩ (XLR)


Dielectric strength

1.5 kV dc / > 1 kVdc (XLR/Plug)


Insulation resistance

> 2 GΩ


Mechanical


Wiring

according to IEC 268-12 pin 2 = signal, pin 1 and 3 connected to ground


Locking device

Latch lock


Material


Contact plating

2 µm Ag over 2 µm Ni


Contacts

Bronze (CuSn6) (XLR)


Contacts

Brass (CuZn39Pb3) (plug)


Insert

Polyamide (PA 6.6 30 % GR)


Shell

Zinc diecast (ZnAl4Cu1)


Shell plating

gal Cu/Ni
